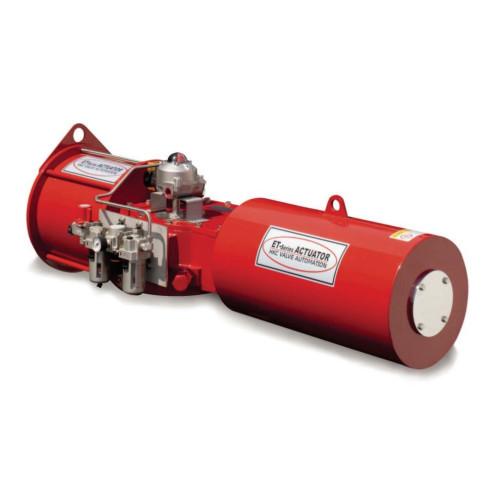

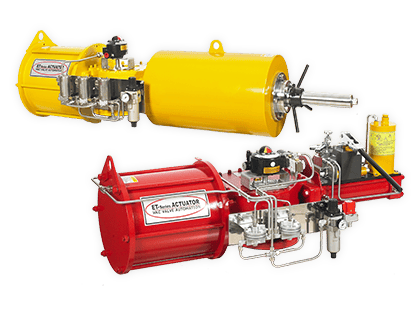

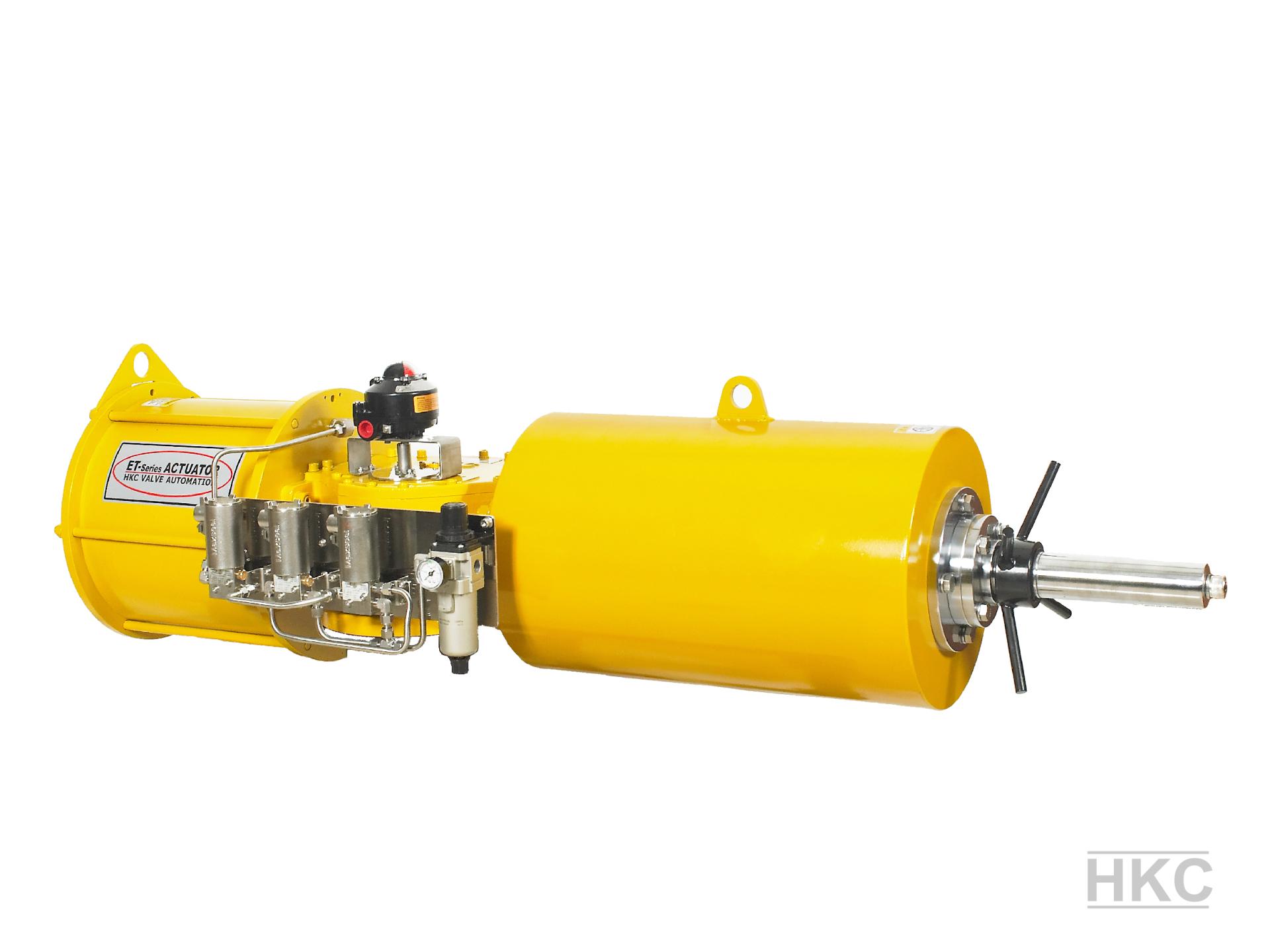

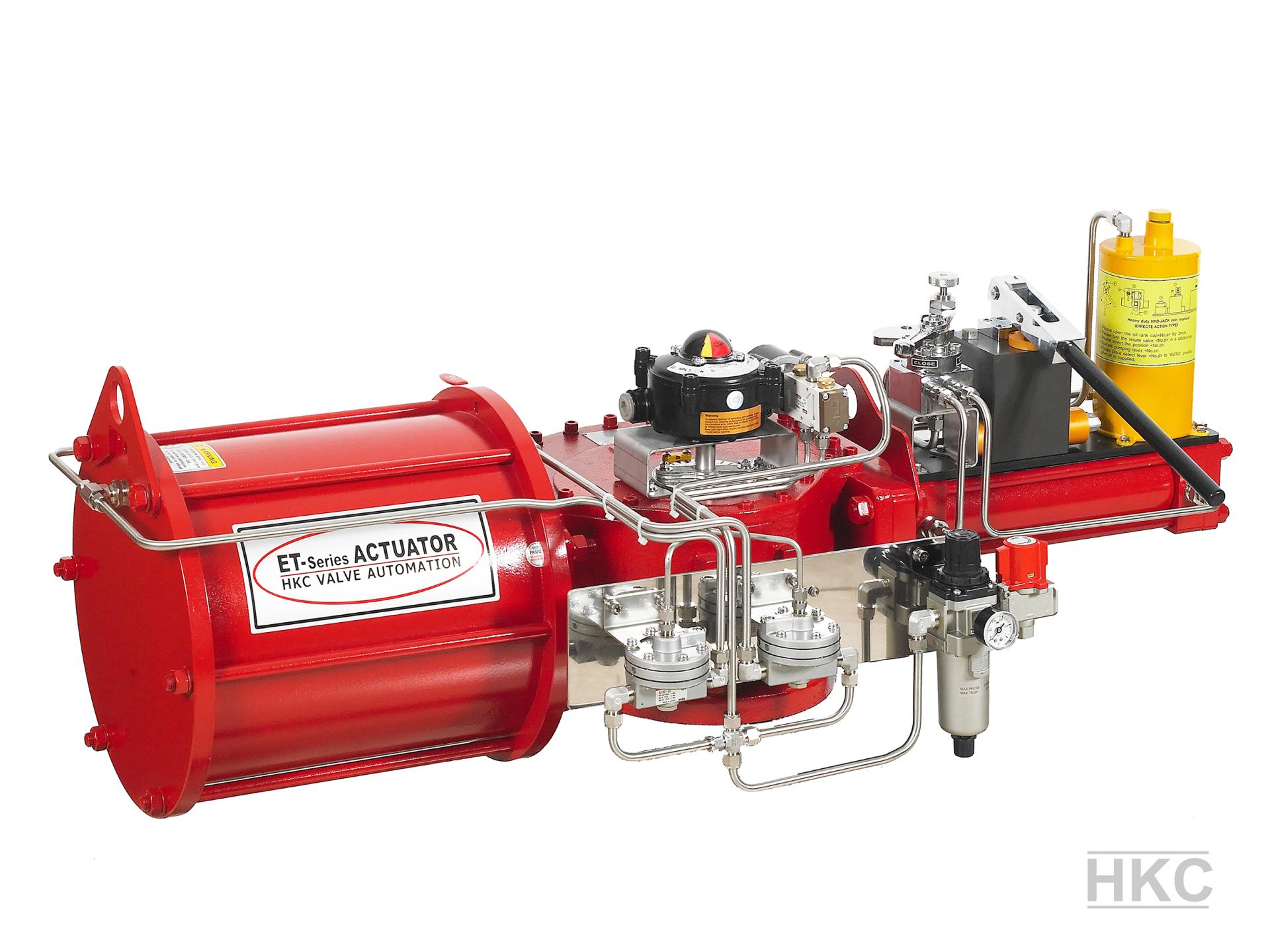

ET Series Pneumatic Actuator

• The ET Series, heavy-duty pneumatic actuator, is designed for large size, high torque rotary valve applications (ETS Series) and linear valve applications (ETL).
• Safe and reliable operation.
• Wide range of torque outputs.
• Available in either double acting or spring return configurations.
• Versatile modular design.
• MSS or ISO flange standard.
• A complete customized solution with pneumatic accessories attached.

Material

• Steel alloy

Certificates & approvals

• PED
• SIL 2
• EAC
• RINA type approval

Torque

• 495~250,000 Nm

Operating pressure

• Standard: 3-8 bar

Travel angle

• 0-90°

Ambient temperature

• Standard: -20 to +80 °C
• Low temperature: -60 to +60 °C
• High temperature: -20 to +100 °C

Manual override

• Option: Jack screw override
• Option: Hydraulic override

Color

Traffic red6.6R 4.5/13.2OtherNano coatingEnhance corrosion resistance

  •
