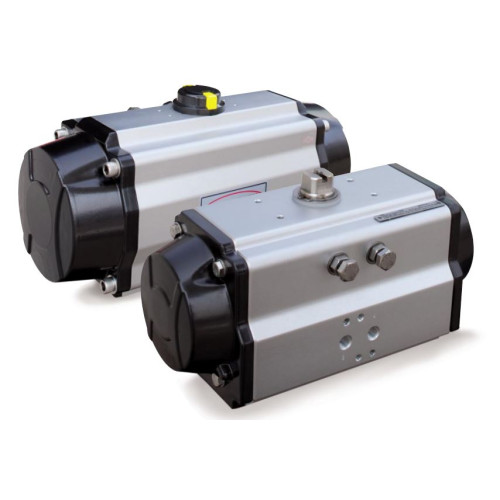

HP Series

• The HP Series, pneumatic actuator, is designed for rotary valve applications, such as ball and butterfly valves.
• Available in either double acting or spring return configurations
• Wide range of torque outputs.
• NAMUR and ISO flange standard.
• A complete customized solution with pneumatic accessories attache

Material

• Aluminium alloy

Certificates & approvals

• PED
• SIL 2
• EAC
• RINA type approval

Torque

• 7.5-1174 Nm (double acting, 5 bar)

Operating pressure

• 2.5-8 bar

Travel angle

• Standard: 0-90°
• Option: 0-135° (HP-075D, 100D, 125D, 145D, 180D, 200D)
• 3 position option: 0-45-90° (HP-075D)
• Side stopper: 0-60°, 0-120°, etc.

Ambient temperature

• Standard: -20 to +80 °C
• Low temperature: -40 to +80 °C
• High temperature: -20 to +150 °C

Body

• Standard: Soft anodizing
• Option: Hard anodizing
• Option: Polyester powder coating or epoxy-polyurethane coating

Color

RedRAL 3001BlueRAL 5005YellowRAL 1033BlackRAL 9005OtherNano coatingEnhance corrosion resistance
